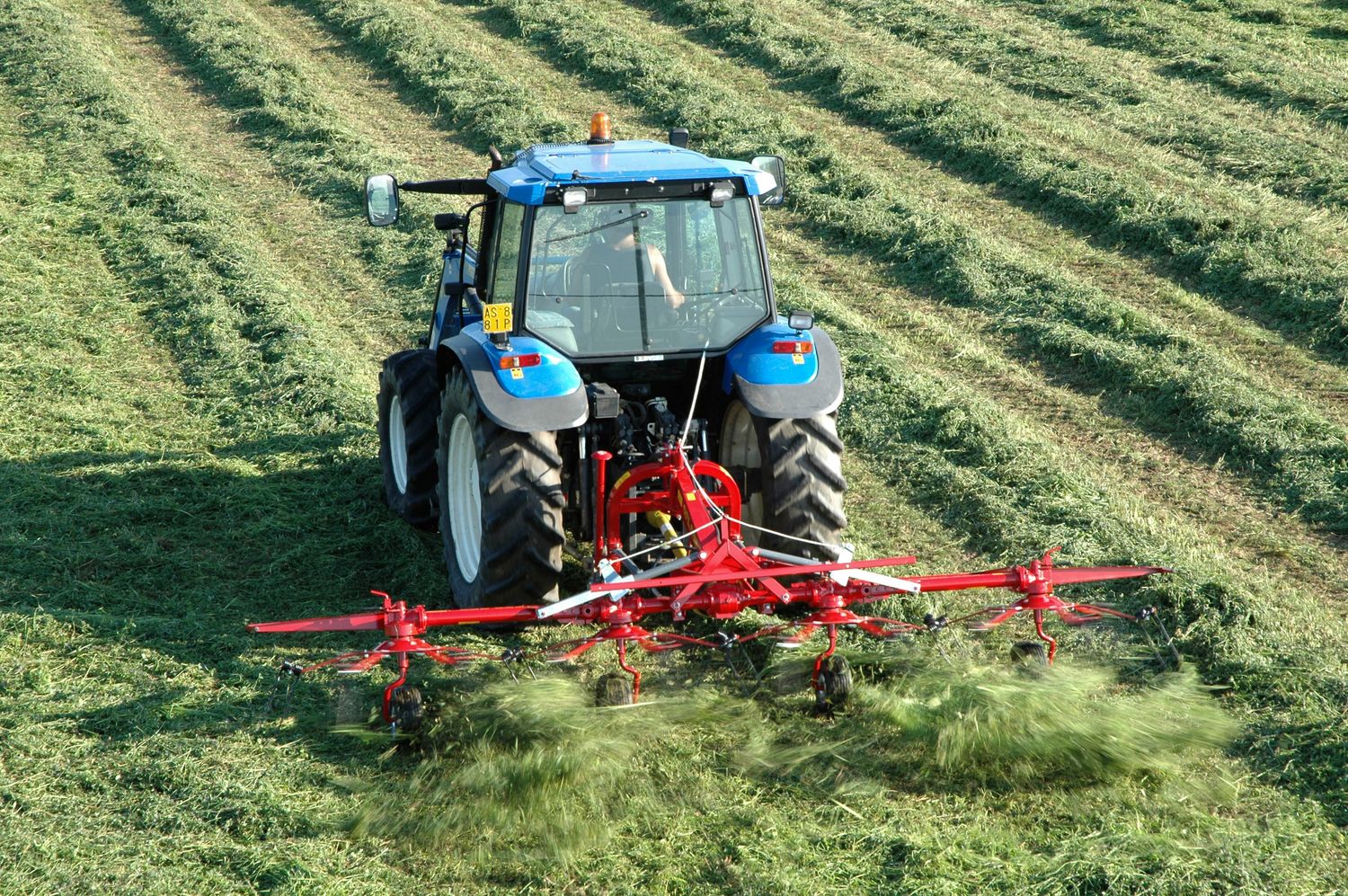

ROTORAY TEDDERS SERIES GTS
Our machines are ideal for spreading, aerating, and turning any type of forage. Available in various sizes to meet your needs, you can choose between trailed or mounted models, with hydraulic or manual arm closure systems using spring ties. We offer models with working widths ranging from 2.80 meters to 5.20 meters, ensuring a wide variety of options. The result is fast and gentle handling of the product, ensuring high performance and preservation of the nutritional values of the forage.
Technical Features of the GTS Series Rakes:
- Articulated Frame: Perfectly adapts to uneven terrain, ensuring stability and functionality.
- Robust Construction: Made with high-quality materials for durability over time.
- Ease of Use: Designed for intuitive and hassle-free operation.
- High Performance: Engineered to maximize work efficiency.
- Minimal Maintenance: Designed for prolonged use and reduced wear.
The articulated three-point hitch provides mobility and maneuverability even on curves. The forage is deposited evenly in the machine’s wake, and during lifting maneuvers, the machine automatically returns to alignment with the tractor.
Additional Devices and Features:
- Side Spreading Device: The wheels can be manually directed via a handle, allowing for greater control.
- Directional Stabilizer Shock Absorbers: Combined with the articulated three-point hitch, these absorbers prevent trajectory deviations, keeping the machine aligned with the tractor without restricting the hitch’s mobility.
- Spring Teeth: Made from high-quality raw materials, available in straight or hooked versions for optimal durability.
- Uniform Spreading: Thanks to the small-sized rotors, you achieve an even and clean spreading of hay.
- Terrain Adaptability: The support wheel allows the machine to perfectly follow the ground profile, maintaining an optimal working height. This feature is particularly recommended for hilly and mountainous areas.
- Towing System: A towing system can be installed on all our machines as a replacement for the three-point hitch.
Technical Specifications – GTS Series Rakes
Model |
Required Power (HP/KW) |
PTO (r.p.m.) |
Working Width (m) |
No. of Rotors |
No. of Arms per Rotor |
Weight (kg) |
Three-Point Hitch |
Transport Width (m) |
Swiveling Wheels |
Tire Type |
Side Spreading |
Hydraulic Closure |
GTS 280 |
12/15 |
540 |
2.80 |
2 |
6 |
185 |
Fixed |
2.50 |
Yes |
3.50x6 |
Yes |
On request |
GTS 420 |
18/25 |
540 |
4.20 |
4 |
5 |
420 |
Articulated |
2.20 |
Yes |
15x6.00-6 |
Yes |
On request |
GTS 520 |
18/25 |
540 |
5.20 |
4 |
6 |
500 |
Articulated |
2.50 |
Yes |
15x6.00-6 |
Yes |
On request |
